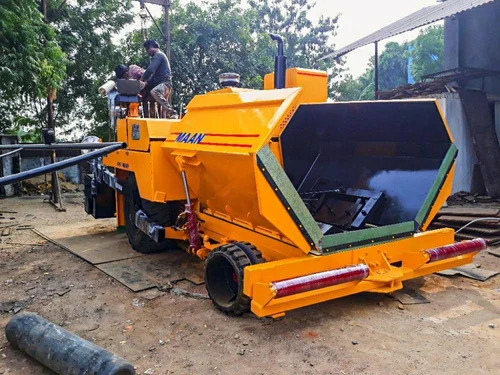

MAAN Wet Mix Paver Finisher

ASPHALT PAVER MAP - 4.5 HES

ET MIX PAVER MWP - 4.5 HES (Dual Application)

Operating Height

3000 mm

3000 mm

Shipping Height

2280 mm

2280 mm

Length

5665 mm

5665 mm

Operating Width

3100 mm

3100 mm

Shipping Width

2860 mm

2860 mm

Weight (approx)

9.50 tons

10 tons

Truck Dumping Clearance

600 mm

600 mm

Wheel Base

2500 mm

2500 mm

Engine Make

Kirloskar 4R 1040 or Equivalent

Kirloskar 4R 1040 / Ashok Leyland

Engine Ranging

76 HP at 2200 RPM

(Turbo) 105 HP at 2200 RPM / 101 HP

Battery

12 Volts - 19 plats (Heavy Duty)

12 Volts - 19 plats (Heavy Duty)

Tyres Front 2nogs Solid Rubbers

550(22") x 407(16") x 305 mm (12")

550(22") x 407(16") x 305 mm (12")

Tyres Rear 2nogs Pneumatic

1100 x 20 x 16 ply

1200 x 20 x 18 ply

Steering

Power Steering (Hydraulically)

Power Steering (Hydraulically)

Hopper Capacity (approx)

4 Cubic meters

4 Cubic meters

Transmission

Mechanical Transmission 8 speed reduction gearbox with differential lock

Brakes

Air Brake

Air Brake

Traveling Speed

0-18 KM / H

0-18 KM / H

Paving Speed

1.25 - 23 meters / minute

1.25 - 23 meters / minute

Paving Thickness

10-200 mm

10-250 mm

Paving Width

2.5 to 4.5 meters

2.5 to 4.5 meters

Hydraulically Extendable

Hydraulically Extendable Screed

Screed Vibrating (Hydraulically)

0-3000 mm per minute

0-3000 mm per minute

Screed Healing Arrangements

2 nos Burners

Auger (worm)

Ni hard steel casing

Ni hard steel casing

Auger Diameter

300 mm

300 mm

Fuel Tank Capacity

80 Liters

80 Liters

Hydraulic Oil Tank Capacity

100 Liters

100 Liters

Crown

-1 to +3

-1 to +3

Standard Accessories

Tool Box

Tool Box
